Telescopic cylinders
Telescopic cylinders consist of several cylinder tubes pushed into each other and can thus generate more stroke than they are long.
![](https://storzhydraulik.de/wp-content/uploads/bfi_thumb/dummy-transparent-qd36jf63dv1ipfgv1fq859t0o4a2vi1b8vgmwng25k.png)
![Telescopic cylinders Storz Hydraulik Teleskopzylinder](https://storzhydraulik.de/wp-content/uploads/2019/02/teleskopzylinder.jpg)
Storz Hydraulik Teleskopzylinder Storz Hydraulik Teleskopzylinder
Technical Documents

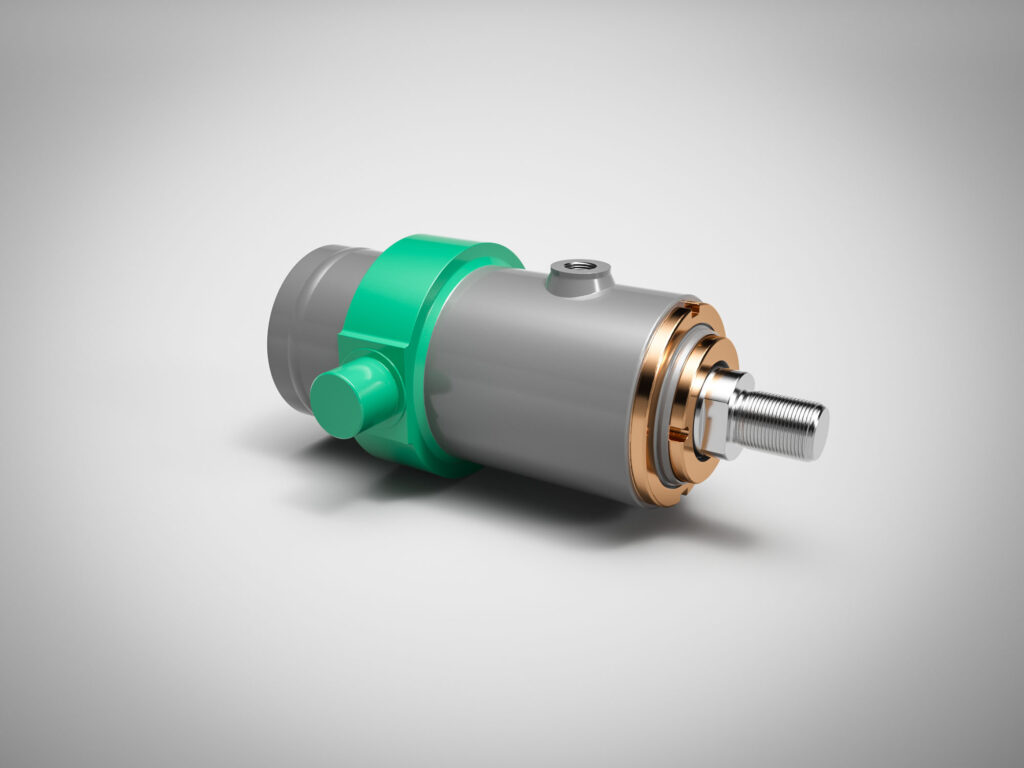

ZT 212 – Telescopic hydraulic cylinders (Storz standard) – Nominal pressure 120 bar (12 MPa)
Good to know: The telescopic cylinders are available in double-acting and single-acting versions.
- standardized
- in a 4-stage variant
- Available in a choice of 6 mounting types for a wide range of applications
Technical data
Nominal pressure: | 120 bar (12 MPa) |
Static test pressure: | 180 bar (18 MPa) |
Piston diameter: | 32 – 280 mm |
Temperature range: | -20…+80 °C |
Viscosity range: | 10…600 mm/s² |
Lifting speed: | 0-0,5 m/s |
Operating medium: | Mineral oil according to DIN 51524, HFD fluids HFA, HFB and HFC fluids by special designs |
Mounting types
![zt_b zt_b](https://storzhydraulik.de/wp-content/uploads/2019/02/zt_b.png)

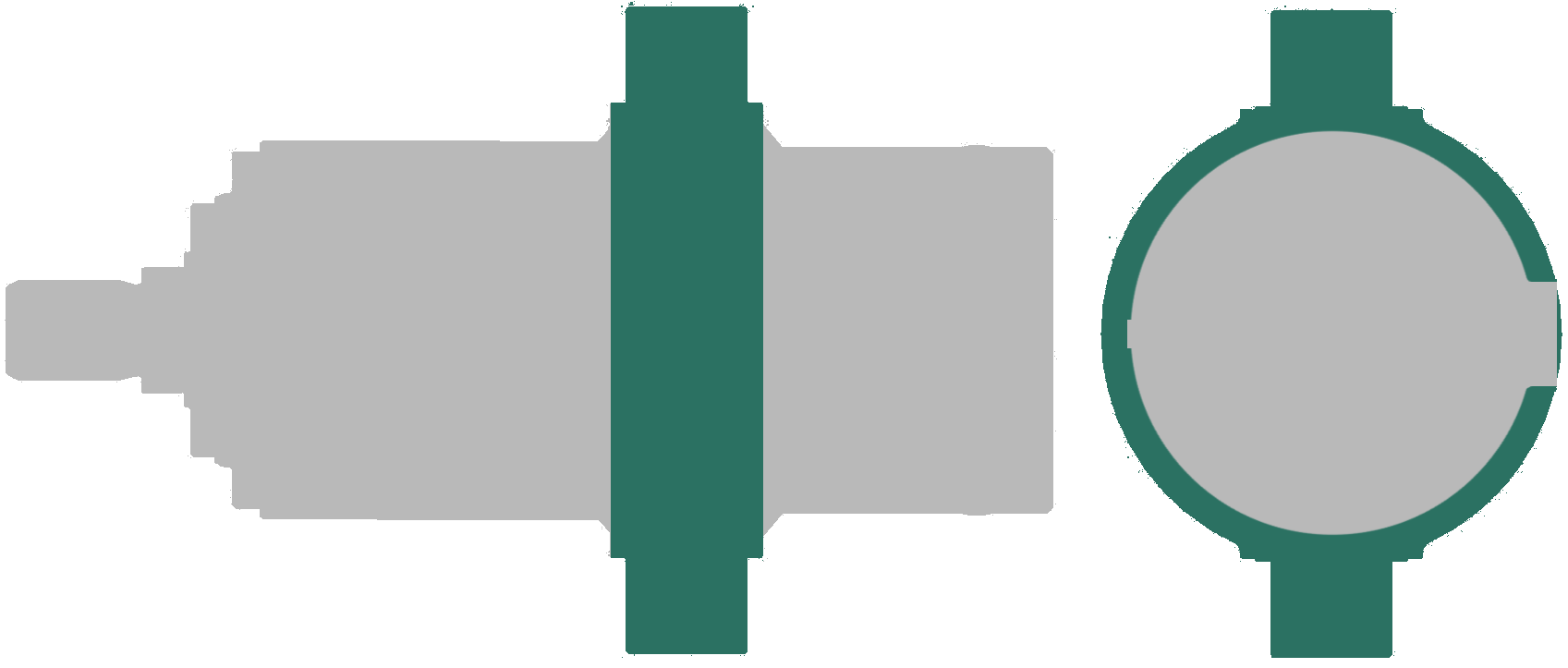

B Trunnion
![zt_ca zt_ca](https://storzhydraulik.de/wp-content/uploads/2019/02/zt_ca.png)

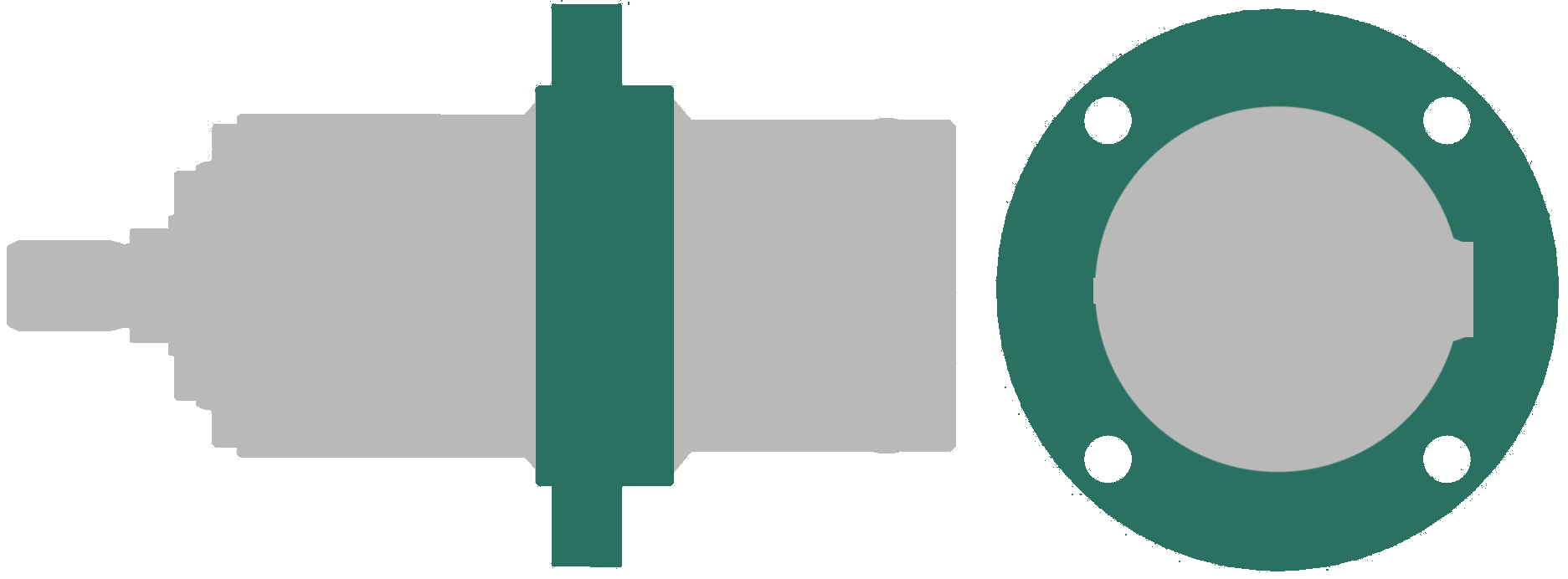

CA Round flange on cylinder head
![zt_cb zt_cb](https://storzhydraulik.de/wp-content/uploads/2019/02/zt_cb.png)
CB Round flange at cylinder bottom
![zt_db zt_db](https://storzhydraulik.de/wp-content/uploads/2019/02/zt_db.png)

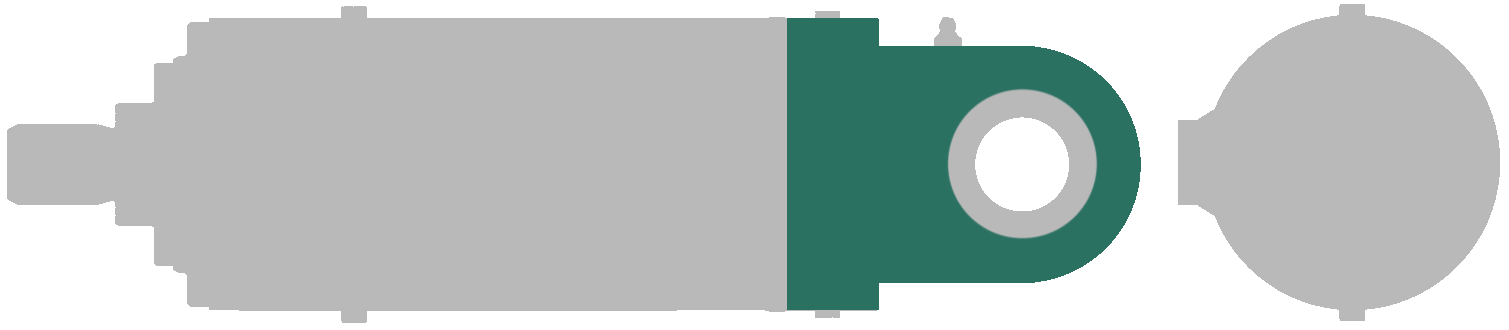

DB Joint eye at cylinder bottom
![zt_ea1 zt_ea1](https://storzhydraulik.de/wp-content/uploads/2019/02/zt_ea1.png)

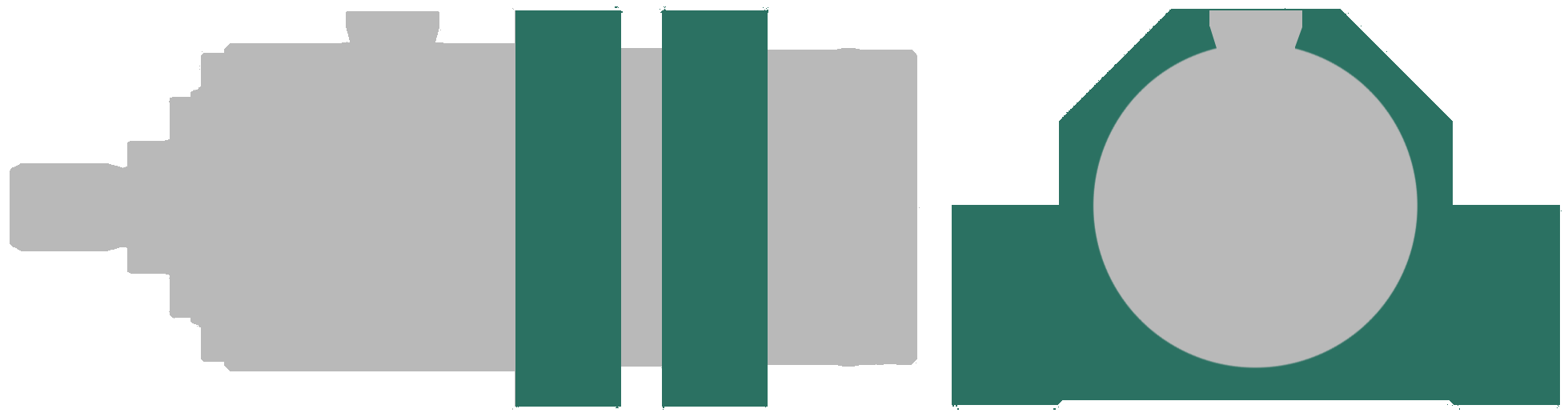

EA-1 Foot mounting up to piston ø100
![zt_ea2 zt_ea2](https://storzhydraulik.de/wp-content/uploads/2019/02/zt_ea2.png)

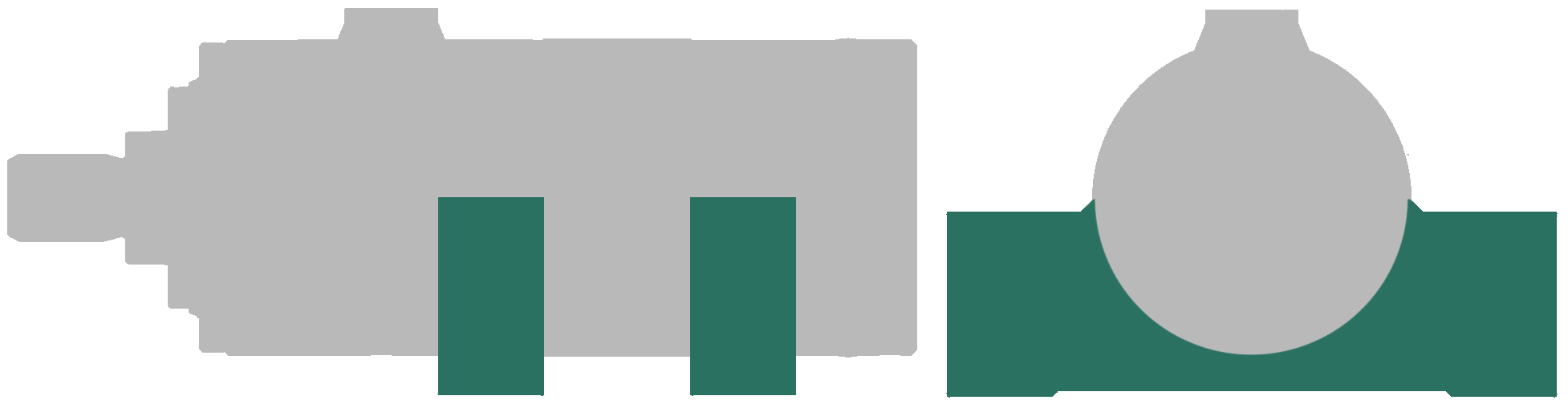

EA-2 Foot mounting from piston ø140
![](https://storzhydraulik.de/wp-content/uploads/bfi_thumb/dummy-transparent-qd36jf63dv1ipfgv1fq859t0o4a2vi1b8vgmwng25k.png)
![teleskopzylinder_ztw212_1535 Storz Hydraulik Teleskopzylinder](https://storzhydraulik.de/wp-content/uploads/2019/02/teleskopzylinder_ztw212_1535.jpg)
Storz Hydraulik Teleskopzylinder Storz Hydraulik Teleskopzylinder
Technical Documents

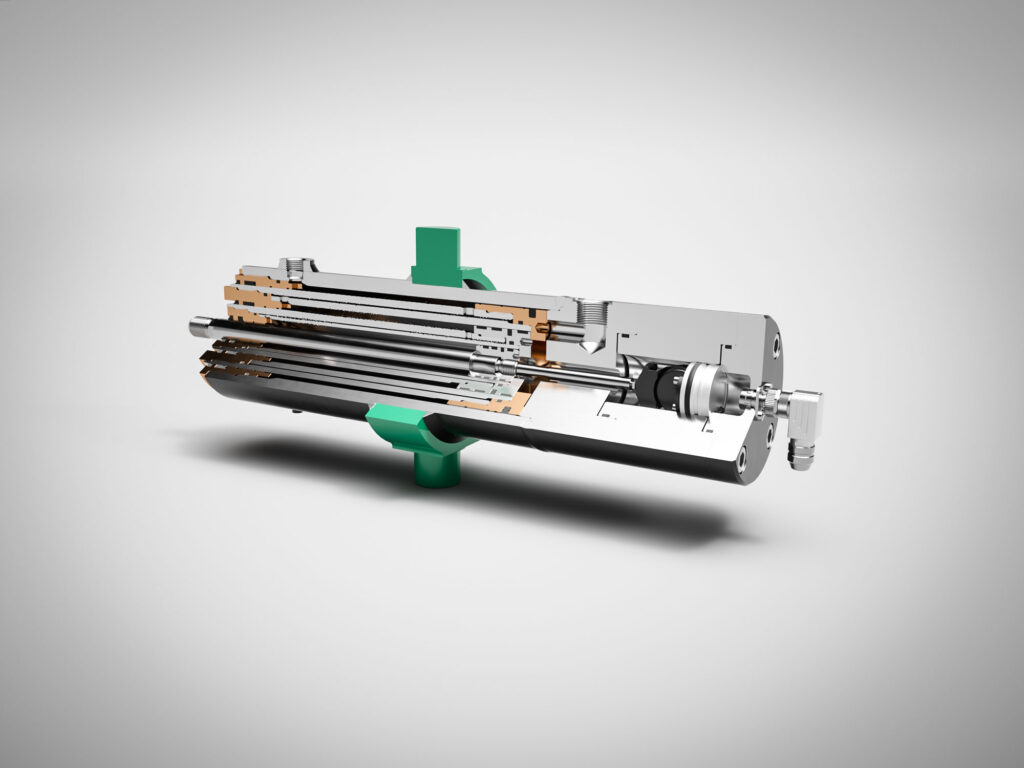

ZTW 212 – Double-acting telescopic cylinder with displacement measuring system – Nominal pressure 120 bar (12 MPa)
Good to know: Here we have further developed the ZT 212 double-acting telescopic cylinder series in response to increased customer demand.
- standardized
- with a stroke length of up to 5000 mm, in 2- or 3- stage versions (available with more stages on request).
- integrated displacement transducer, completely enclosed, sealed off (IP69K)
- internally installed, pressure-resistant wire-actuated encoder for recording the displacement of the piston rod
- reliable, absolute encoding of the stroke at every stage
- for repeat accuracies of 0.2 mm.
- for analog values, CANopen and redundant measurement
- Plug connector as connection interface
Technical data
Nominal pressure: | 120 bar (12 MPa) |
Static test pressure: | 180 bar (18 MPa) |
Piston diameter: | 63 – 140 mm (others possible on request) |
Temperature range | -20 °C … +80 °C (through hydraulic fluid) |
Viscosity range: | (10 … 600) 10-6 m²/s |
Lifting speed: | 0 – 0,5 m/s |
Operating medium: | Mineral oil according to DIN 51524, HFD fluids |
Mounting types
![ztw_b ztw_b](https://storzhydraulik.de/wp-content/uploads/2019/02/ztw_b.png)

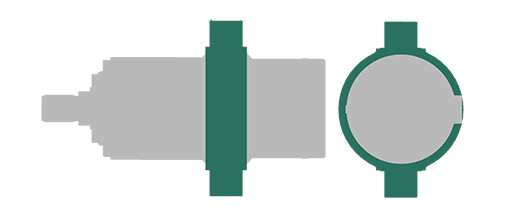

B Trunnion (S.4)
![ztw_ca ztw_ca](https://storzhydraulik.de/wp-content/uploads/2019/02/ztw_ca.png)

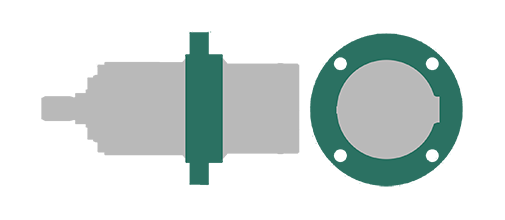

CA Round flange on cylinder head (S.6)
![ztw_cb ztw_cb](https://storzhydraulik.de/wp-content/uploads/2019/02/ztw_cb.png)

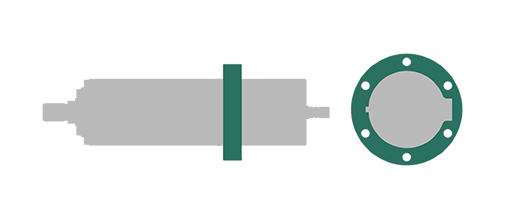

CD Round flange at cylinder bottom (S.7)
![ztw_db ztw_db](https://storzhydraulik.de/wp-content/uploads/2019/02/ztw_db.png)

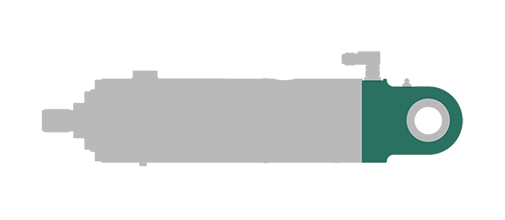

DB Joint eye at bottom (S.8)
![ztw_ea-1 ztw_ea-1](https://storzhydraulik.de/wp-content/uploads/2019/02/ztw_ea-1.png)

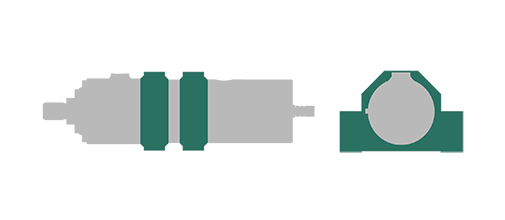

EA-1 Foot mounting (S.9)
![ztw_ea-2 ztw_ea-2](https://storzhydraulik.de/wp-content/uploads/2019/02/ztw_ea-2.png)

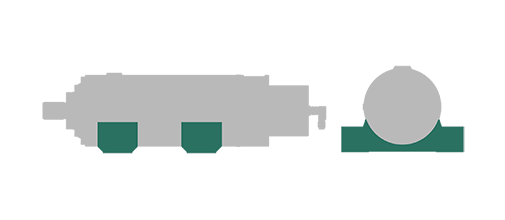

EA-2 Foot mounting (S.10)
