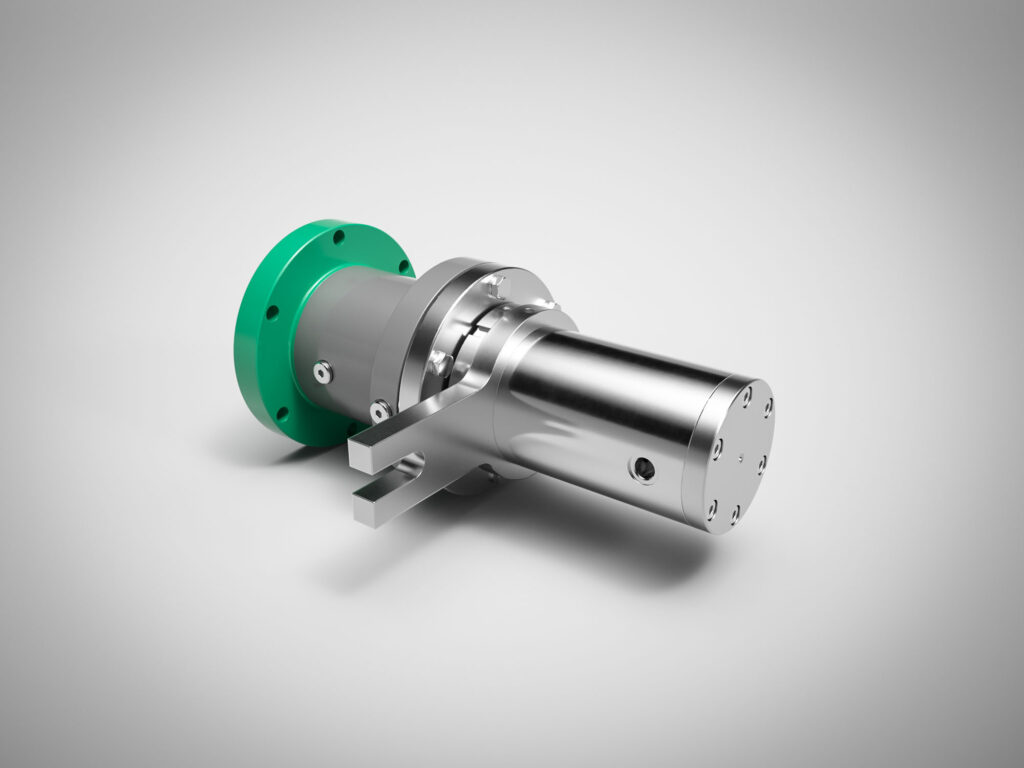

Coiler cylinders are specifically designed for winding and unwinding materials such as wire, rope or tape.

Technical Documents

Special cylinder

sonderzylinder.pdf PDF-document [2.0 MB]

ZBHZ 1601 – Differential hydraulic cylinders (Storz standard) – Nominal pressure 160 bar (16 MPa)

Coiler cylinders for hydraulic clamping of recoilers and decoilers
Piston diameters ranging from 80 to 280 mm and nominal pressures of up to 160 bar
Maximum possible release pressure up to 250 bar
Piston rods with either male or female thread
Also available with optional a built-in shut-off and pressure relief valve
Mounted rotary connection for the oil supply designed for speeds of up to 700 rpm

Good to know: On request, we can also offer you specific custom solutions, deviating from our standard products.

About Coiler cylinders

Coiler cylinders are specialized hydraulic or pneumatic components that play a vital role in various industrial processes. They are particularly essential in applications for handling material Coiler, where precise movements and high forces are required.

Definition and function

These cylinders operate hydraulically and offer precise control over the movement and tension of the rolls by accurately positioning the machine components. The primary function of a Coiler cylinders is to securely hold the material roll and unwind or rewind it evenly to ensure continuous and smooth production.

Types of Coiler cylinders

There are different types of Coiler cylinders that can be used depending on specific requirements and applications:

Hydraulic Coiler cylinders : These cylinders use hydraulic fluid to generate high forces and are ideal for heavy and demanding applications.
1. Double-acting Coiler cylinders : These cylinders can operate in both directions and offer a flexible and efficient solution for complex winding processes.
2. Single-acting Coiler cylinders : These cylinders operate in only one direction and are useful in applications where a return spring or gravity provides the return stroke.

Application areas and information

Coiler cylinders are used in a wide variety of industries,

Paper industry: For unwinding and rewinding paper rolls in printing presses and paper processing plants.
Textile industry: For handling fabric rolls in weaving mills and textile processing plants.
Metal processing: For winding metal strips in steelworks and sheet metal processing plants.
Plastics industry: For unwinding and rolling up plastic films in production plants.
Printing industry: In printing machines for handling paper and film rolls.

In summary, Coiler cylinders are indispensable components in many industrial processes. Their ability to generate precise movements and high forces makes them an important investment for companies seeking efficiency, quality, and cost savings in their production processes.
