ZBD 2512 – Differential hydraulic cylinders (CDH1) – Nominal pressure 250 bar (25 MPa)
Good to know: The STORZ ZBD 2512 series hydraulic cylinder for a nominal pressure 250 bar is interchangeable with the CDH1 series.
- International interchangeability thanks to the definition of the mounting dimensions, installation length, surface ratios, piston rod ends and connecting threads
- Same installation dimensions for cylinders with and without end position damping
- Two rod diameters assigned to each piston diameter as standard
- Choice of 6 mounting types and 6 sealing variants as standard
- Position of line connection as well as venting, start-up valve and throttle screw freely configurable, standard (sequence mentioned) 1,2,3,4.
Please note: Please order add-on components separately.
Technical data
Nominal pressure: | 250 bar (25 MPa) |
Static test pressure: | 375 bar (37,5 MPa) |
Piston diameter: | 40-250 mm (larger than special version) |
Area ratio j: | 1,6 and 2 |
Temperature range: | -20…+80 °C |
Viscosity range: | 10…600 mm²/s |
Lifting speed: | 0 – 1 m/s depending on seal variant |
Operating medium: | Mineral oil according to DIN 51524, HFD fluids HFA, HFB and HFC fluids possible through special designs |
Mounting types
![2512_mt4 2512_mt4](https://storzhydraulik.de/wp-content/uploads/2019/02/2512_mt4.png)
MT4 Trunnion
![2512_mf3 2512_mf3](https://storzhydraulik.de/wp-content/uploads/2019/02/2512_mf3.png)
MF3 round flange on cylinder head
![2512_mf4 2512_mf4](https://storzhydraulik.de/wp-content/uploads/2019/02/2512_mf4.png)

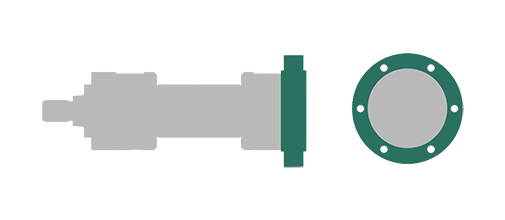

MF4 round flange at cylinder bottom
![2512_mp3 2512_mp3](https://storzhydraulik.de/wp-content/uploads/2019/02/2512_mp3.png)
MP3 Swivel eye
![2512_mp5 2512_mp5](https://storzhydraulik.de/wp-content/uploads/2019/02/2512_mp5.png)
MP5 Joint eye at cylinder bottom
![2512_ms2 2512_ms2](https://storzhydraulik.de/wp-content/uploads/2019/02/2512_ms2.png)
